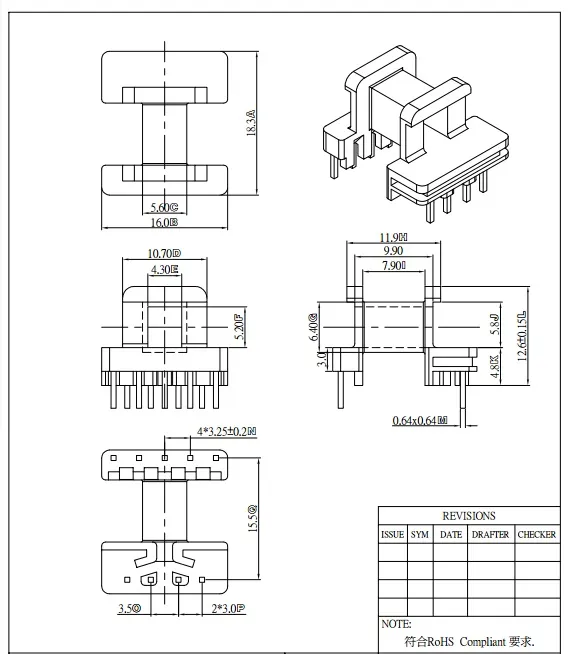

    Common Mode Choke Coils with Ee16 Bobbin, Without Ferrite Core Comply with RoHS

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-ACLEE16
    Certification : CE/UL/REACH/ROHS
    Price : 0.20-0.26
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Common Mode Choke Coils with Ee16 Bobbin, Without Ferrite Core Comply with RoHS

    Basic Info.

    Model NO.
    IKP-ACLEE16
    Working Frequency
    High Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Without Core
    Range of Application
    Choke
    Packaging Form
    Epoxy Resin Inductance
    Brand
    OEM
    Inductor Value
    Fixed Inductor
    Core Type
    No Core
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description

    Common Mode Choke Coils with Ee16 Bobbin, Without Ferrite Core Comply with RoHS
    nductance test conditions: 100kHz
    Turns: counted as internal layer
    Highest PFC impedance over the widest frequency range
    RoHS Directive-compliant
    PVC insulation shell
    Tin-silver over copper terminations
    High saturation flux density
    Less flux leakage and beat
    High effective insertion loss and excellent noise suppression
    Precise inductance
    High current, horizontal or vertical mount
    Operating temperature: -55 to 105°C
    Wide frequency range, large adjustable range for permeability (μ0) from 50,000-160,000
    Housing and tubes are available
    Customized specifications are accepted
    Applications: switching power output and smoothing circuits
    Used as choke coil for high frequency SMPs
    Countermeasure against spike ripples
    EMI/RFI filters
    DC/DC converters
    IP and OP devices
    Power inverter
