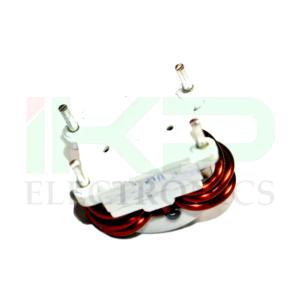

    Common Mode Coil Inductor

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-ACL-091
    Certification : CE/UL/REACH/ROHS
    Price : 0.35-0.5
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Common Mode Coil Inductor

    Basic Info.

    Model NO.
    IKP-ACL-091
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Nanocrystaline
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Nanocrystaline
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description


    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

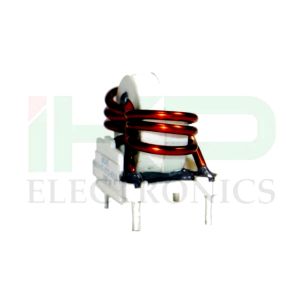

    Common Mode Coil Inductor

    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
    Part NumberL@0 Amps D.C.
    (µH) ±20%
    Max RDC.()Suggested Rated
    Current (Amps)
    ACL4545-0.05MH1.5.0049.5
    ACL4545-0.20MH2.2.0049.5
    ACL4545-0.45MH3.3.0059.5
    ACL4545-0.80MH5.6.0059.5
    ACL4545-1.25MH6.8.0069.5
    ACL4545-1.80MH10.0079.5
    ACL4545-2.45MH12.0089
    ACL4545-3.20MH15.0089
    ACL4545-4.05MH18.0109
    ACL4545-5.00MH22.0119
    ACL4545-6.05MH27.0129
    ACL4545-7.20MH33.0139
    ACL4545-8.45MH39.0159
    ACL4545-9.80MH47.0169
    ACL4545-11.25MH56.0189
    ACL4545-12.80MH68.0199
    ACL4545-14.45MH82.0219
    ACL4545-16.20MH100.0239
    ACL4545-18.05MH120.0269
    ACL4545-20.00MH150.0289
    ACL4545-22.05MH180.0319
    ACL4545-24.20MH220.0349
    ACL4545-26.45MH270.0389

    Founded in 2000, IKP is a national high- tech enterprise and a well-known professional manufacturer of magnetic components in China. IKP's products are widely used in photovoltaic,EV, charging pile, energy storage, communication power supply, industrial power supply, audio equipment and other fields.
