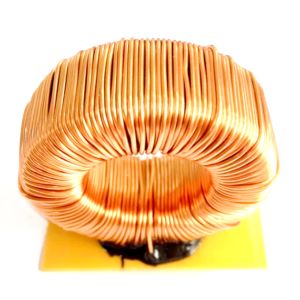

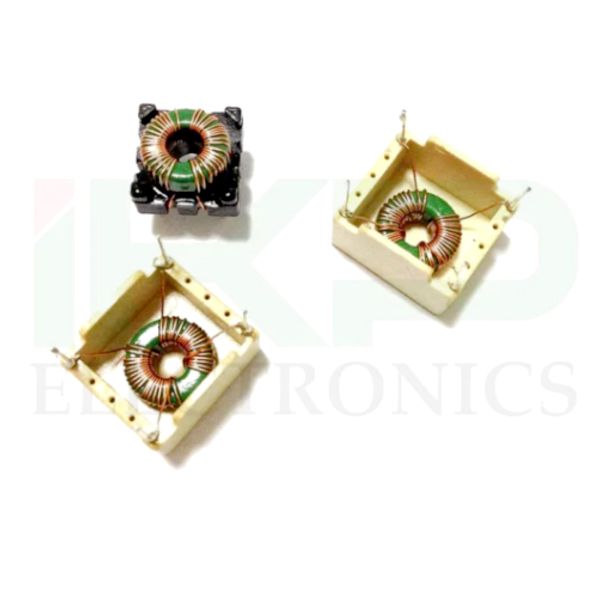

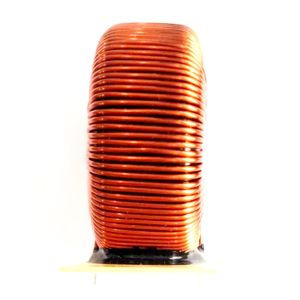

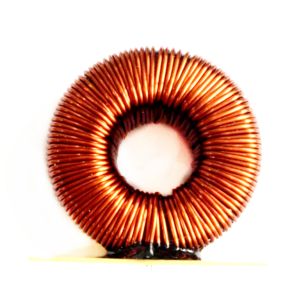

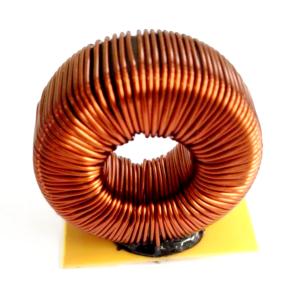

    Common Mode Power Inductor with Base or Case

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-ACL0909-1.2MH
    Certification : CE/UL/REACH/ROHS
    Price : 0.1-0.5
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Common Mode Power Inductor with Base or Case

    Basic Info.

    Model NO.
    IKP-ACL0909-1.2MH
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Different Type Core Avaliable
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description


    Common Mode Power Inductor with Base or Case
    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)

    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
    Part NumberL@0Amps D.C.
    (MH)±20%
    MaxRDC.()Suggested Rated
    Current (Amps)
    ACL2929-0.2MH0.20.0055.5
    ACL2929-0.8MH0.80.0065.5
    ACL2929-1.8MH1.80
    2.45
    .0085.5
    ACL2929-3.2MH3.20.0105.5
    ACL2929-5.0MH5.00.0125.0
    ACL2929-7.2MH7.20.0145.0
    ACL2929-9.8MH9.80.0165.0
    ACL2929-12.8MH12.80.0205.0
    ACL2929-16.2MH16.20.0245.0
    ACL2929-20.0MH20.00.0285.0
    ACL2929-24.2MH24.20.0325.0
    ACL2929-28.8MH28.80.0345.0
    ACL2929-33.8MH33.80.0385.0
    ACL2929-39.2MH39.20.0465.0
    ACL2929-45.0MH45.00.0564.5
    ACL2929-51.2MH51.20.0624.5
    ACL2929-57.8MH57.80.0903.5
    ACL2929-64.8MH64.80.1003.5
    ACL2929-57.0MH57.00.1203.5
    ACL2929-80.0MH80.00.1802.0
    Common Mode Power Inductor with Base or CaseBrowse our online showroom, and contact us with your OEM/ODM specifications. Our operators are waiting your calls or E-mail. IKP will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more informatio
