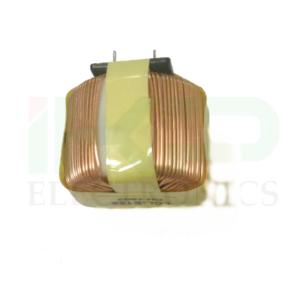

    Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers

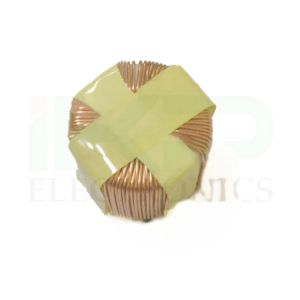

    Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers
    • Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers
    • Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers
    • Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers
    • Buy cheap Nanocrystalline Common Mode Choke Inductor from wholesalers

    Nanocrystalline Common Mode Choke Inductor

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-LCL-E125
    Certification : CE/UL/REACH/ROHS
    Price : 0.27-0.40
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Nanocrystalline Common Mode Choke Inductor

    Basic Info.

    Model NO.
    IKP-LCL-E125
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Copper Coil
    Range of Application
    Coupling
    Packaging Form
    Epoxy Resin Inductance
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Nanocrystalline Core
    Small Size,Large Inductance
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Anhui, Hefei
    HS Code
    850431900
    Production Capacity
    50, 000 PCS/Week

    Product Description



    Small size,high inductance
    Low core losses
    High permeability
    Applicatrions:
    Home application
    EMI filter
    Common mode choke
    ,High frequency transformer
    common mode choke

    Large current
    Low resistance
    MPP, Hi-flux, sendust, RF carbonyl and iron power core
    For excellent EMI suppressor
    High frequency and low loss
    Common mode filter coils
    Common mode toroidal inductor
    Toroidal common mode filter
    For SMPS application
    SMT and low profile available
    Compliant with the RoHS Directive
    Part NumberInductance (mH) @ 1KHzIDC(A)MAX.DCR()MAX.Wire Diameter (Φ) mm
    CMC1508-0.625MH0.62510.040.41
    CMC1508-0.1MH0.110.060.41
    CMC1508-0.225MH0.22510.070.41
    CMC1508-0.4MH0.410.10.41
    CMC1508-0.625MH0.62510.1250.41
    CMC-1508-0.9MH0.920.030.51
    CMC1508-1.225MH1.22520.040.51
    CMC1508-1.6MH1.620.060.51
    CMC1508-2.0MH2.020.0750.51
    CMC1508-2.5MH2.530.020.58
    CMC1508-3.0MH3.030.030.58
    CMC1813-0.85MH0.8520.050.58
    CMC1813-0.62MH0.6220.0750.58
    CMC1813-0.1MH0.120.0850.58
    CMC1813-0.22MH0.2220.110.58
    CMC1813-0.4MH0.420.20.58
    CMC1813-0.62MH0.62550.0350.58
    CMC3118-0.05MH0.05550.040.76
    CMC3118-0.22MH0.2240.0460.76
    CMC3118-0.49MH0.49540.060.76
    CMC3118-0.88MH0.8820.20.58
    CMC3118-1.37MH1.37540.130.76
    CMC3118-1.98MH1.9850.0720.91
    Nanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke Inductor
