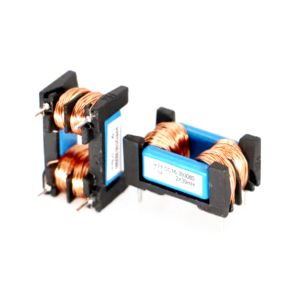

    China Customized Frame Core Common Mode Choke Filter Inductors

    Ask Lasest Price
    Brand Name : IKP
    Model Number : FCC16-393080-7
    Certification : CE/UL/REACH/ROHS
    Price : 0.35-0.55
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    China Customized Frame Core Common Mode Choke Filter Inductors

    Basic Info.

    Model NO.
    FCC16-393080-7
    Working Frequency
    High Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    OEM/ODM
    According to Customer Inquiry
    Bobbin
    Independent Mold Opening
    Transport Package
    Carton
    Specification
    HWL(mm): 13.5*15.0*24.5
    Trademark
    IKP
    Origin
    China
    HS Code
    85045000
    Production Capacity
    10000pieces/Week

    Product Description


    Frame core power line choke provides exceptional common-mode suppression and exceptional stray inductance to suppress differential-mode noise. In effect, the FCC series combines the features of two separate components into one. They are compact in size and are available in the either vertical configuration, using minimal board area, or horizontal configuration for low profile applications. They are frequently used in LED lighting, electronics ballast and switch -mode power supplies.

    FEATURES:
    •Core Size: FC1614
    •Shape: Vertical
    •Rated Current: 0.29~2.93A
    •Insulation voltage: 1500VAC,2S(line-line)
    •Rated voltage: 250VAC max@40°C
    •High inductance with low resistance
    •Current-compensated double choke, closed magnetic circuit with frame construction
    •Excellent differential-mode suppression, high pulse-handing capability
    •Design complies with EN 60938-2 (VDE 0565-2), RoHS-compatible

    APPLICATIONS:
    •Electronic ballasts for lamps
    •High power switch-mode power supplies for consumer electronics

    EXTERNAL DIMENSIONS: (unit: mm)

    China Customized Frame Core Common Mode Choke Filter Inductors



    China Customized Frame Core Common Mode Choke Filter Inductors

    China Customized Frame Core Common Mode Choke Filter Inductors

    China Customized Frame Core Common Mode Choke Filter Inductors
    China Customized Frame Core Common Mode Choke Filter Inductors
    China Customized Frame Core Common Mode Choke Filter Inductors
    China Customized Frame Core Common Mode Choke Filter Inductors
    China Customized Frame Core Common Mode Choke Filter Inductors
    China Customized Frame Core Common Mode Choke Filter Inductors
