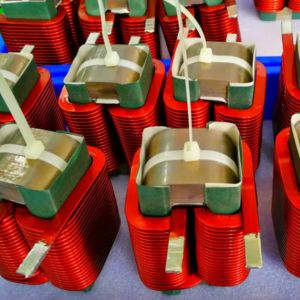

    Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers

    Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers
    • Buy cheap Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor from wholesalers

    Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor

    Ask Lasest Price
    Brand Name : IKP
    Model Number : LM781600-001R
    Certification : CE/UL/REACH/ROHS
    Price : 17.11-17.88
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor

    Basic Info.

    Model NO.
    LM781600-001R
    Working Frequency
    Low Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Epoxy Resin Inductance
    Inductor Value
    Variable Inductor
    Transport Package
    CTN
    Specification
    0.4m 80A
    Trademark
    IKP
    Origin
    China
    HS Code
    8504319000
    Production Capacity
    5000pieces/Day

    Product Description

    Good Price Ikp Inductive Choke CTN 0.4m 80A China Common Mode Power Inductor

    F
    eatures:

    1. Organic silicone potting, soft material, good shock absorption and protection effect
    2. The physical and chemical properties are stable, high temperature and low temperature resistance, can work in the range of -50 ~ 200 degrees
    3. Excellent electrical performance and insulation ability, long service life
    4. The soft potting compound is easy to take out, and the components can be repaired or replaced quickly

    Product Details:
    Brand: IKP
    P.N: LM781600-001R
    Core: Sendust core*5
    Inductance: 0.4mH
    Rated current: 80A
    Copper wire: Φ1.5mm*14
    Winding: 1 start, 2 finish
    Insulation system: Class B 130°C
    Storage temperature: -40°C ~80°C
    Operation temperature: -40°C ~130°C
    OCL: pins(1-2)=0.4mH±10% @1kHz, 0.1v
    DCR: pins(1-2)=15.0mΩ MAX
    Hipot: WDG to CASE 1.5kVac 60Hz 60Seconds 3mA MAX, No flashover
    Layer insulation: 1.0kWac no flashover
    Electrical and mechanical specifications 100% tested
    RoHS compliant compatible


    Application:
    Solar inverter, Wind inverter, PFC filter, Choke coils, EV inverter, ABS system for car, car generators, inverter air conditioners, etc.

    Contact us today for more information.
