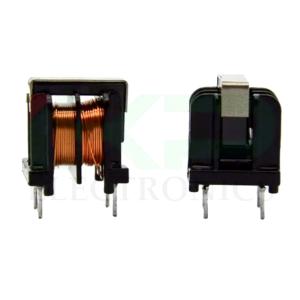

    High Frequency Filter Common Mode Inductor with RoHS, UL

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-UU16
    Certification : CE/UL/REACH/ROHS
    Price : 0.09-0.15
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    High Frequency Filter Common Mode Inductor with RoHS, UL

    Basic Info.

    Model NO.
    IKP-UU16
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Filter Inductor
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Smoothing
    Packaging Form
    Generic
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Transport Package
    Carton
    Specification
    UU16
    Trademark
    IKP
    Origin
    China
    HS Code
    8504500000
    Production Capacity
    5000000PCS/Year

    Product Description





    Model NO.: IKP-UU16
    Operating Frequency: 20kHz-500KHz Operating Temperature: -40ºC to +125ºC
    Storage Temperature: -25ºC to +85ºC Working Frequency: High Frequ ency

    Features

    1. Small size
    2. Easy to round
    3. Low price
    4. High reliability
    5. Meeting UL, VDE, CSA requirements
    6. Windings balanced within 1%
    7. Customized specifications are welcome
    8. Small, medium and high quantity is available.


    Application

    1. Common mode filter inductor
    2. Driver transformer
    3. Current Transformer

    Electrical Specifications
    ModelMounting StyleLengthWidthHeightPin DistanceRow DistancePin Diameter
    UU9.8-01Vertical17.012.017.027.08.0Φ0.6
    UU9.8-02Vertical17.016.013.027.08.0Φ0.6
    UU10.5-01Vertical19.017.522.0210.013.0Φ0.7
    UU10.5-02Vertical19.019.017.0210.013.0Φ0.7
    UU15.7-01Vertical23.019.026.5210.013.0Φ0.7
    UU15.7-02Vertical23.025.023.0210.013.0Φ0.7
    UU16-01Vertical23.019.026.5210.013.0Φ0.7
    UU16-02Vertical23.025.023.0210.013.0Φ0.7

    We can design and manufacture customized part with specific requirement.
