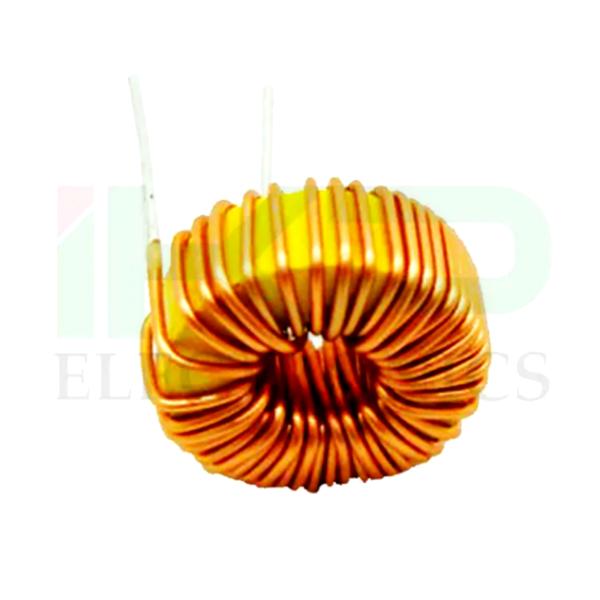

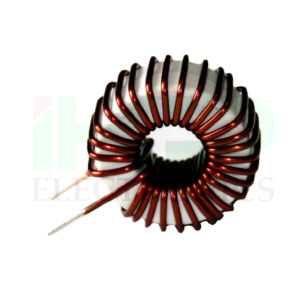

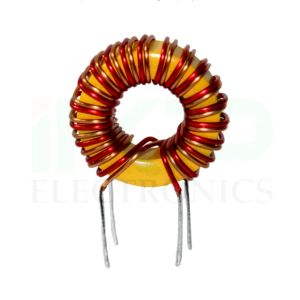

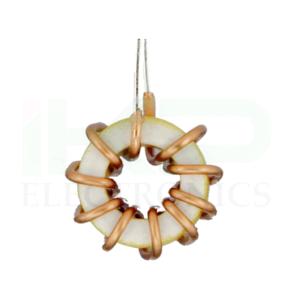

Customized Common Mode Coil Inductor with Base

Ask Lasest Price
Brand Name :	IKP
Model Number :	IKP-T10
Certification :	CE/UL/REACH/ROHS
Price :	0.10-0.13
Payment Terms :	L/C, T/T
Supply Ability :	100,000/week
Delivery Time :	10-15 days

Add to Cart

Product Details
Company Profile

Customized Common Mode Coil Inductor with Base

Basic Info.

Model NO.

IKP-T10

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Copper Coil

Range of Application

Choke

Inductor Value

Variable Inductor

Transport Package

Carton, Pallet

Origin

China

HS Code

8504500000

Production Capacity

5000000PCS/Year

Product Description

Customized Common Mode Coil Inductor with Base

Features
1. Separated windings for minimum interwinding capacitance
2. Single layer windings for highest common mode impedance over the widest frequency range
3. Suitable for 50Hz to 500 KHz
4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
5. All materials used are UL94-VO recognized
6. Operating temperature: -55ºC to +105ºC
7. Available in either vertical or horizontal mount
8. Available in vertical header mount for ease in PCB assembly
9. Easy FR-4 board mounting Good vibration resistance

Application
1. Low Frequency AC Reactor
2. Solar Power System
3. Power Conditioning System
4. Wind Power System
5. Automatic Drive Machine
6. Induction Heater
7. Welding Machine
8. Paper Industries
9. RFI Suppression Choke
10. DC/DC converters
11. IP and OP devices

Physical and Electrical Performance Parameters

Part NO.	Inductance(mH) @1 KHz	IDC(A) (Max)	DCR(mΩ) (Max)	Mounting	Dimension(mm) Coil size A×B×C
220-65-23.5	0.065	23.5	0.9	Vertical	26×26×18
220--100-19	0.100	19.0	1.3	Vertical	28×26×18
220-180-15	0.180	15.0	2.5	Vertical	28×26×20
220-470-12	0.470	12.0	4.0	Vertical	28×26×18
220-880-9	0.880	9.0	6.5	Horizontal	28×30×20
220-1000-3.2	1.000	3.2	15.3	Vertical	26×26×17
220-1180-7.5	1.180	7.5	12.5	Horizontal	26×28×20
220-1500-2	1.500	2.0	18.0	Vertical	26×26×18
220-1800-5	1.800	5.0	50.0	Horizontal	26×28×18
220-2200-5	2.200	5.0	40.0	Vertical	26×26×19
250-200-15	0.200	15.0	5.0	Horizontal	30×28×15
250-200-18	0.200	18.0	5.0	Vertical	30×28×15
250-300-15	0.300	15.0	7.3	Horizontal	30×32×18
250-300-15A	0.300	15.0	7.3	Vertical	38×28×17
250-425-8	0.425	8.0	4.26	Vertical	32×30×21
250-600-9	0.600	9.0	10.0	Horizontal	30×30×18
250-600-9A	0.600	9.0	10.0	Vertical	30×28×19
250-1000-8	1.000	8.0	20.0	Vertical	30×28×13
250-3500-1.5	3.500	1.5	80.0	Horizontal	30×32×16
250-3700-4	3.700	4.0	70.0	Vertical	30×32×17

Physical and Electrical Performance Parameters

Part NO.	Inductance(mH) @1 KHz	IDC(A) (Max)	DCR(mΩ) (Max)	Mounting	Dimension(mm) Coil size A×B×C
310-100-30	0.100	30.0	3.0	Horizontal	38×40×18
310-100-30A	0.100	30.0	3.0	Vertical	36×36×15
310-150-20	0.150	20.0	3.4	Horizontal	36×36×16
310-150-20A	0.150	20.0	3.4	Vertical	38×38×18
310-150-30	0.150	30.0	3.5	Vertical	38×38×19
310-200-15	0.200	15.0	5.0	Vertical	38×38×18
310-200-18	0.200	18.0	5.0	Horizontal	38×38×19
310-280-13	0.280	13.0	2.9	Vertical	28×26×18
310-580-13	0.580	13.0	10.0	Vertical	38×38×18
310-7200-2.5	7.200	2.5	93.0	Horizontal	38×40×18
310-11000-1.5	11.000	1.5	184.0	Vertical	40×40×19
