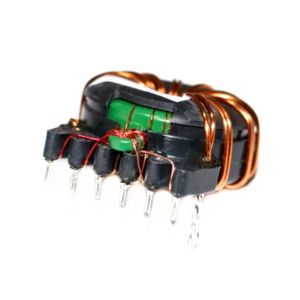

    Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

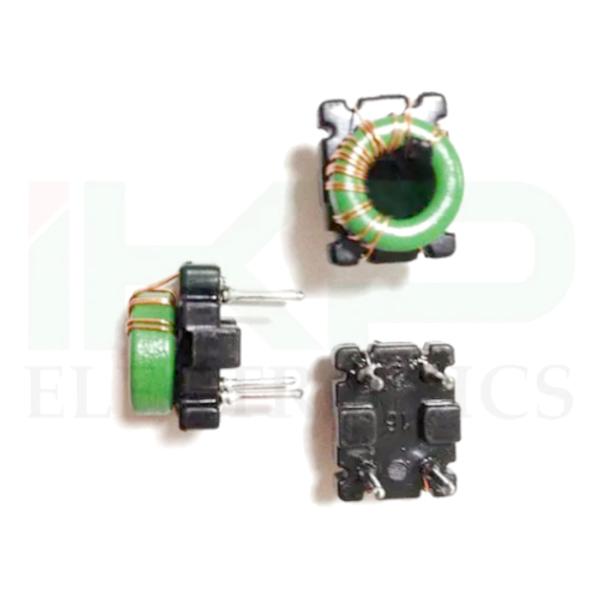

    Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

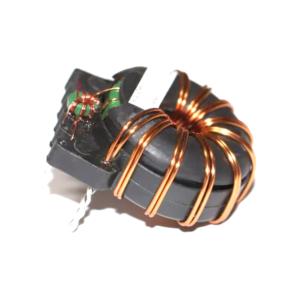

    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

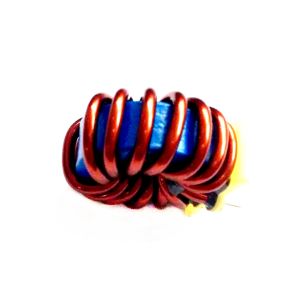

    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

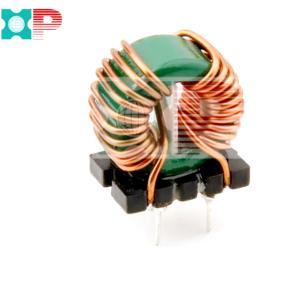

    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

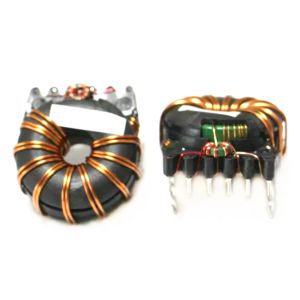

    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers
    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers
    • Buy cheap Horizantal Common Mode Choke Coil Inductor with Base from wholesalers

    Horizantal Common Mode Choke Coil Inductor with Base

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-CMC3011-1.2MH
    Certification : CE/UL/REACH/ROHS
    Price : 0.35-0.50
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Horizantal Common Mode Choke Coil Inductor with Base

    Basic Info.

    Model NO.
    IKP-CMC3011-1.2MH
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Nanocrystaline
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Nanocrystaline
    Used in Various Power Supplies
    Customized Designs Are Accepted
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description


    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s
    Horizantal Common Mode Choke Coil Inductor with Base
    Part NumberL@0Amps D.C.
    (MH)±20%
    MaxRDC.()Suggested Rated
    Current (Amps)
    ACL2929-0.2MH0.20.0055.5
    ACL2929-0.8MH0.80.0065.5
    ACL2929-1.8MH1.80
    2.45
    .0085.5
    ACL2929-3.2MH3.20.0105.5
    ACL2929-5.0MH5.00.0125.0
    ACL2929-7.2MH7.20.0145.0
    ACL2929-9.8MH9.80.0165.0
    ACL2929-12.8MH12.80.0205.0
    ACL2929-16.2MH16.20.0245.0
    ACL2929-20.0MH20.00.0285.0
    ACL2929-24.2MH24.20.0325.0
    ACL2929-28.8MH28.80.0345.0
    ACL2929-33.8MH33.80.0385.0
    ACL2929-39.2MH39.20.0465.0
    ACL2929-45.0MH45.00.0564.5
    ACL2929-51.2MH51.20.0624.5
    ACL2929-57.8MH57.80.0903.5
    ACL2929-64.8MH64.80.1003.5
    ACL2929-57.0MH57.00.1203.5
    ACL2929-80.0MH80.00.1802.0


    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335

    Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. IKP will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
