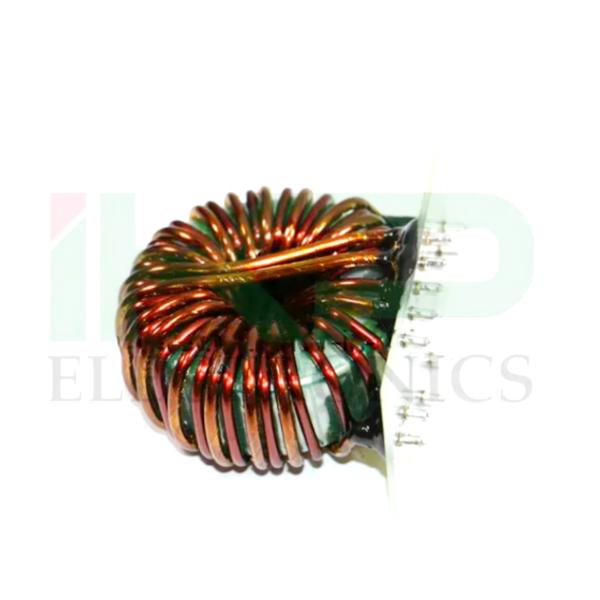

    Amorphous Core Common Mode Coil Inductor with RoHS Certifications

    Ask Lasest Price
    Brand Name : IKP
    Model Number : IKP-PI-CC002
    Certification : CE/UL/REACH/ROHS
    Price : 6.54-6.6
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Amorphous Core Common Mode Coil Inductor with RoHS Certifications

    Basic Info.

    Model NO.
    IKP-PI-CC002
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Transport Package
    CTN
    Trademark
    IKP
    Origin
    Xi′an
    Production Capacity
    50000000/Year

    Product Description

    Features:
    1. Manufactured by iron-based amorphous material;
    2. High saturation magnetic induction;
    3. High magnetic permeability,low coercivity,low loss;
    4. Open air gap,excellent constant inductance and anti-DC and bias magnetic field ability.

    Application:
    High current output filter inductor,Air conditioning power supply.

    Specifications:
    Part NumberInductance (MH)IDC (Amps)DCR (OHMS) MAXInductance @10 KHZ NO DC ±15%
    IKP-ACL-XXX-0.05-10.0510.07220
    IKP-ACL-XXX-0.20-10.2010.0857
    IKP-ACL-XXX-0.45-10.4510.12573
    IKP-ACL-XXX-0.80-10.8010.145111
    IKP-ACL-XXX-1.25-11.2510.2170
    IKP-ACL-XXX-1.80-11.8010.235247
    IKP-ACL-XXX-2.45-12.4510.265388
    IKP-ACL-XXX-3.20-13.2010.37564
    IKP-ACL-XXX-4.05-14.0510.6850
    IKP-ACL-XXX-5.00-15.0010.71250
    IKP-ACL-XXX-0.05-30.0530.03122
    IKP-ACL-XXX-0.20-30.2030.0655
    IKP-ACL-XXX-0.45-30.4530.07583
    IKP-ACL-XXX-0.80-30.8030.095133
    IKP-ACL-XXX-1.25-31.2530.118172
    IKP-ACL-XXX-1.80-31.8030.14262
    IKP-ACL-XXX-2.45-32.4530.18429
    IKP-ACL-XXX-3.20-33.2030.22595
    IKP-ACL-XXX-4.05-34.0530.32850
    IKP-ACL-XXX-5.00-35.0030.321500
    IKP-ACL-XXX-0.08-50.0850.0223
    IKP-ACL-XXX-0.30-50.3050.0460
    IKP-ACL-XXX-0.67-50.6750.04272
    IKP-ACL-XXX-1.20-51.2050.058110
    IKP-ACL-XXX-1.25-51.8750.07182



    Customized designs and sizes with specific requirements are available.
