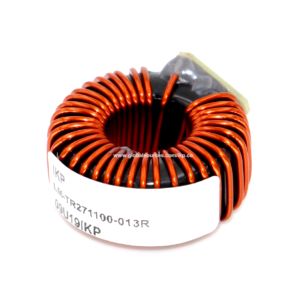

    Output Common Mode Choke for DC/DC CONVERTERS AC/DC Inverters

    Ask Lasest Price
    Brand Name : IKP
    Model Number : LM-TR271100-013R-3
    Certification : CE/UL/REACH/ROHS
    Price : 2.40-4.80
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Output Common Mode Choke for DC/DC CONVERTERS AC/DC Inverters

    Model NumberLM-TR271100-013R-3
    Brand NameIKP
    originChina
    Small OrdersAccepted

    Key Specifications/ Special Features:

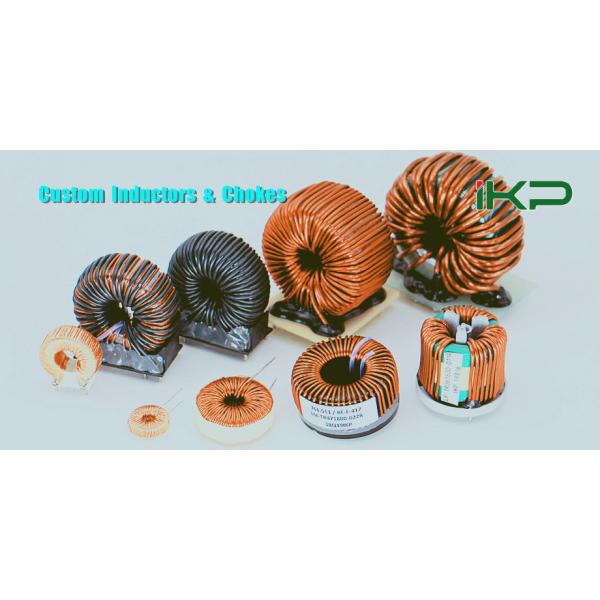

    A large range of toroidal common mode chokes is available, all type of material are used and especially nanocrystalline material which allow a standard range from 0.3 A up to 50 A and far more on custom designed products. All mountings are available, vertical, horizontal, bare coil, and a new range of SMD power chokes.

    Characteristics:
    Application up to 760 VAC
    High permeability MnZn Ferrite or nanocrystalline core material
    Improved insulation through plastic case and winding spacer
    Patented design
    Specification according to EN 60938-2
    Air and creepage distances ≥ 7 mm
    Rated current up to 46 A
    Attenuation up to 60 dB
    Suppression frequency range: 1 kHz to 20 MHz depending from used core material
    Operating temperature: -40 °C to +125 °C
    Flammability corresponding to UL 94 V-0

    Applications:
    Power electronics
    Power line input filter
    Radio interference suppression in motors
    Suppression for common mode noise
    Frequency converter
    Power supplies
    Charging stations
    Output Common Mode Choke for DC/DC CONVERTERS AC/DC Inverters supplier
    Output Common Mode Choke for DC/DC CONVERTERS AC/DC Inverters supplier
    Output Common Mode Choke for DC/DC CONVERTERS AC/DC Inverters supplier

    Shipping Information

    FOB PortShanghai
    Weight per Unit0.1 Kilograms
    HTS Code8504.50.00 00
    Export Carton Dimensions L/W/H37 x 26 x 21 Centimeters
    Lead Time3–15 days
    Dimensions per Unit6.0 x 5.5 x 2.5 Centimeters
    Units per Export Carton120.0
    Export Carton Weight12 Kilograms
