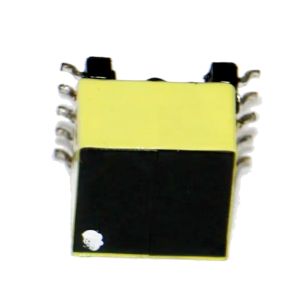

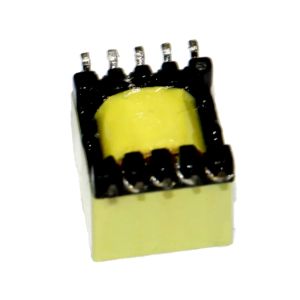

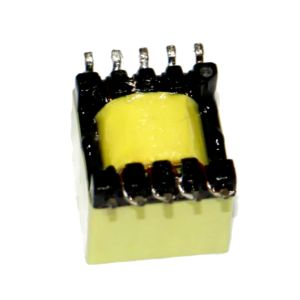

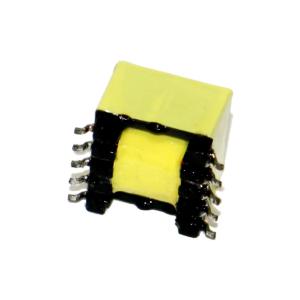

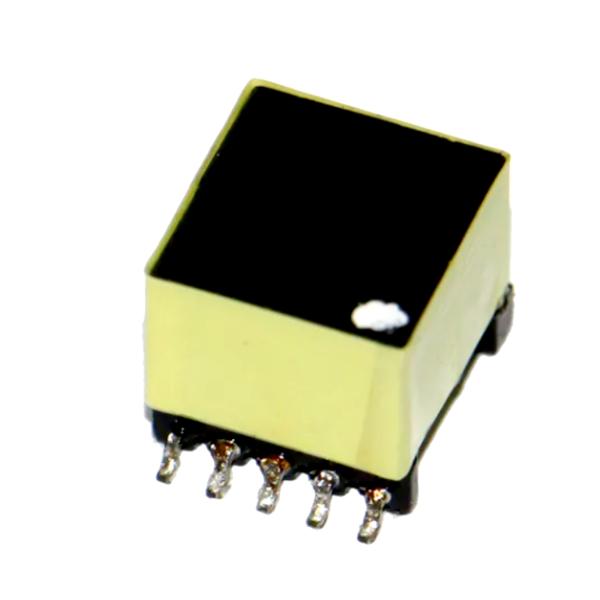

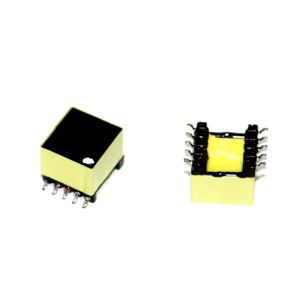

    Customized Factory Supplied Ep13 Type High Frequency Transformer with UL/Ce/RoHS Certitificates

    Ask Lasest Price
    Brand Name : IKP
    Model Number : TF-EP130000-001R
    Certification : CE/UL/REACH/ROHS
    Price : 0.23-0.26
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Customized Factory Supplied Ep13 Type High Frequency Transformer with UL/Ce/RoHS Certitificates

    Basic Info.

    Model NO.
    TF-EP130000-001R
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    High Frequency
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Chip Inductance
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    Transport Package
    Carton
    Specification
    EP13
    Trademark
    IKP
    Origin
    China
    HS Code
    85043090
    Production Capacity
    50000pieces/Day

    Product Description

    Customized Factory Supplied Ep13 Type High Frequency Transformer with UL/Ce/RoHS Certitificates
    Features:
    1. Operating Frequency: 50~200KHz
    2. Magnetic flux leakage small, easy to operate, especially for miniaturization of power supply design.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Physical and Electrical Performance Parameters:
    TypeShape StructureDimensionPower range
    ABCDEF
    EP7Horizontal10.0Max10.0±0.57.6±0.53.5±0.32.4±0.35.3±0.58W Max
    EP1012.0Max10.9±0.511.0±0.53.5±0.32.5±0.37.5±0.515W Max
    EP1315.0Max11.7±0.513.7±0.53.5±0.32.5±0.310.0±0.520W Max
    EP1720.0Max15.0±0.519.0±0.54.0±0.35.0±0.315.0±0.325W Max
    EPC1314.5Max7.5±0.513.4±0.53.5±0.32.5±0.310.5±0.515W Max
    EPC1719.0Max9.7±0.515.5±0.53.5±0.33.0±0.313.0±0.520W Max
    EPC1921.0Max9.5±0.519.0±0.52.5±0.32.5±0.321.2±0.525W Max
    EPC2527.0Max15.7±0.524.9±0.53.5±0.35.0±0.320.0±0.545W Max
    EP7SMD10.0Max8.25±0.56.6±0.50.3±0.12.5±0.38.9±0.54.5W Max
    EP1012.0Max9.0±0.510.5±0.50.2±0.12.5±0.314.6±0.58W Max
    EP1314.0Max10.0±0.513.0±0.50.4±0.12.5±0.317.0±0.515W Max
    EPC1011.5Max4.65±0.59.0±0.50.25±0.12.5±0.311.5±0.58W Max
    EPC1315.0Max6.7±0.514.2±0.50.2±0.13.0±0.319.7±0.515W Max
    EPC1719.0Max9.4±0.517.3±0.50.3±0.13.5±0.323.0±0.520W Max
    EPC1921.0Max9.6±0.519.0±0.50.35±0.12.5±0.324.1±0.525W Max
