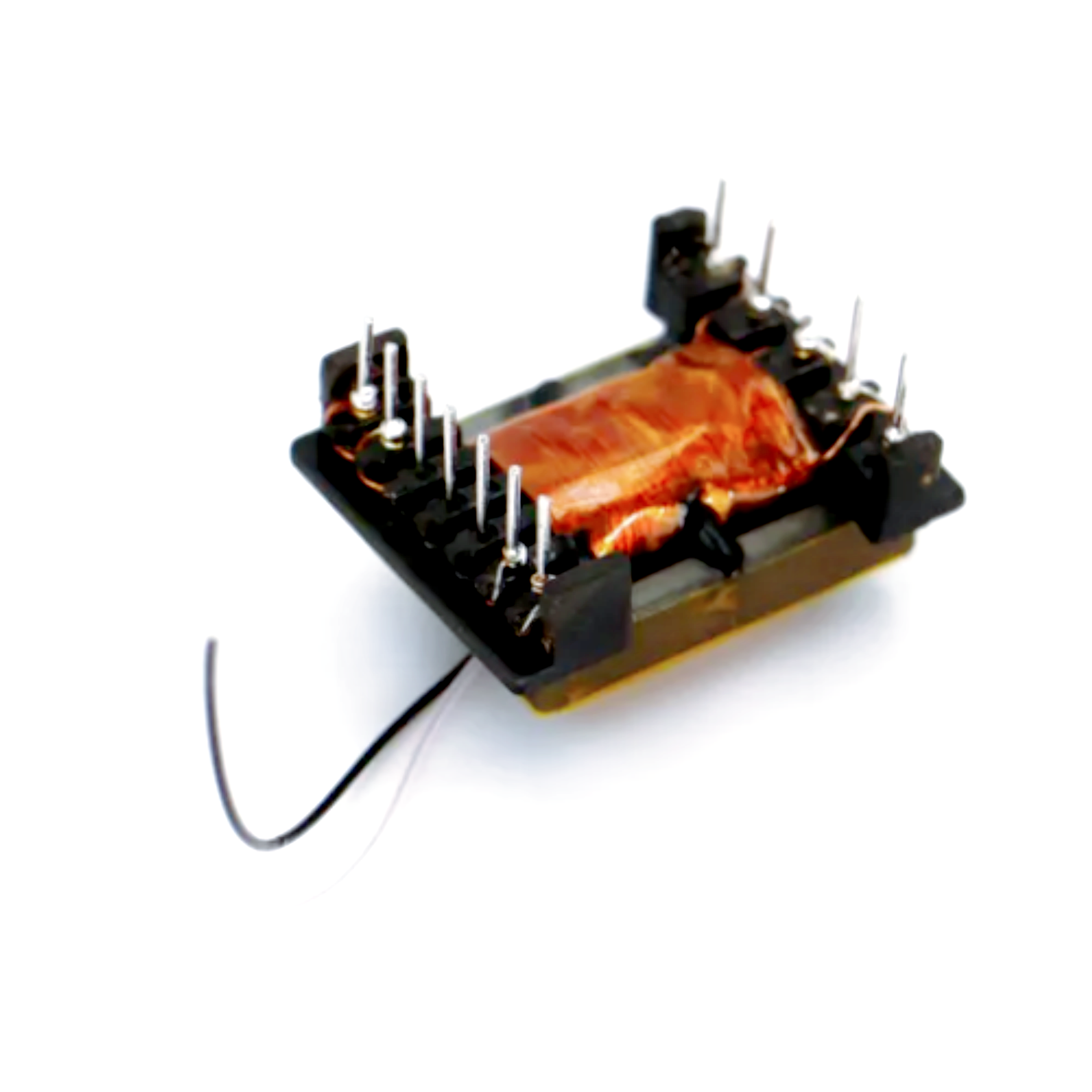

    SMD Type Eel22 High Frequency Transformer with Flying Leads

    Ask Lasest Price
    Brand Name : IKP
    Price : 0.95-0.99
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    SMD Type Eel22 High Frequency Transformer with Flying Leads

    Basic Info.

    Model NO.
    IKP-LF-EEL22
    Core
    Core-type Transformer
    Cooling Method
    Oil-immersed Type Transformer
    Winding Type
    Auto-transformer
    Certification
    ISO9001-2000, ISO9001, CCC
    Usage
    Power Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    EE
    Brand
    Ikp
    Transport Package
    Carton and Tray
    Specification
    TBD
    Trademark
    IKP
    Origin
    China
    HS Code
    85043190
    Production Capacity
    50000pieces/Day

    Product Description

    Features:
    1. Operating Frequency: 50~200KHz

    2. Low-cost, all models, mainly used in the power of the electromagnetic shielding less demanding fields, especially designed for multi-winding output.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Demensions:

    SMD Type Eel22 High Frequency Transformer with Flying Leads


    Physical and Electrical Performance Parameters:
    TypeShape StructureDimensionPower range
    ABCDEF
    EEL16Horizontal18.5Max13.1±0.528.0Max3.5±0.33.0±0.222.5±0.515W Max
    EEL1922.0Max15.6±0.532.0Max3.5±0.33.5±0.224.2±0.520W Max
    EEL2228.5Max17.8±0.537.0Max3.5±0.33.5±0.227.6±0.535W Max
    EEL2528.5Max19.8±0.535.0Max3.5±0.34.0±0.227.2±0.545W Max
    EEL16Vertical18.5Max30.1±0.515.9±0.53.5±0.32.7±0.212.2±0.515W Max
    EEL1922.0Max29.3±0.516.0±0.53.5±0.34.0±0.210.0±0.520W Max
    EEL2228.5Max27.7±0.517.0±0.53.5±0.35.0±0.212.5±0.535W Max
    EEL2528.5Max32.8±0.517.5±0.53.5±0.35.0±0.212.6±0.545W Max
    ***We can design and manufacture customized part with specific requirement
