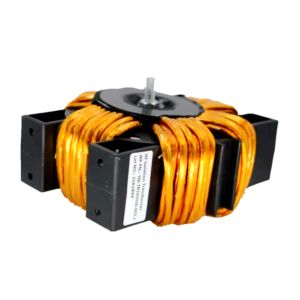

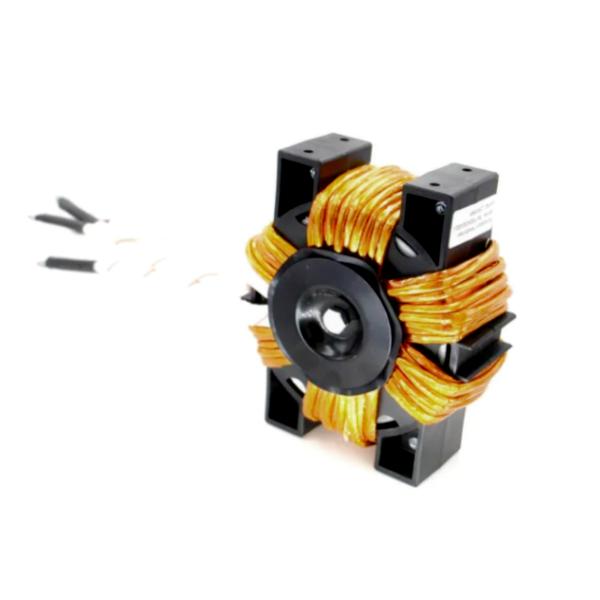

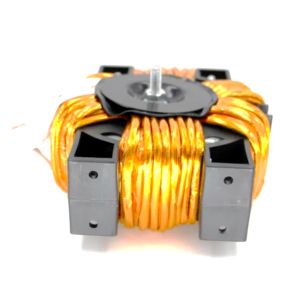

    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

    Ask Lasest Price
    Brand Name : IKP
    Price : 52.00-58.00
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

    Basic Info.

    Model NO.
    TM-TR105030-001R
    Core
    Amorphous Alloy Transformer
    Cooling Method
    Dry-type Transformer
    Winding Type
    Multi-winding Transformer
    Certification
    ISO9001
    Usage
    Single-phase Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Ring
    Brand
    OEM/ODM
    Transport Package
    Carton
    Specification
    137*75mm
    Trademark
    IKP
    Origin
    China
    HS Code
    8504319000
    Production Capacity
    1000PCS/Day

    Product Description

    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified





    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

    Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified



    Usually the Hi-power arc welding inverter's single-ended pulse transformers require the transformer cores with low high frequency loss, high Bs and low Br. so output filter and energy stored inductance required the characteristics of high Bs, low loss and constant permeability. In this case, we made horizontal magnetic treatment on Nano-crystalline alloy to manufacture the transformer cores with low Br and constant permeability.


    IKP ELECTRONICS is a leading manufacturer of high-performance non-crystalline and nano-crystalline alloy components. Its high-performance nano-crystalline ultrathin strip, non-crystalline reactor for solar inverter and EMC common mode filter inductance especially have outstanding technical level and excellent quality, allowing our customers to obtain advantages in key competitive fields.

    IKP's management policy of "quality first, credit foremost and practicality stressed", focused on product development and production. Customer's requirements is our impetus to make progress, customer's satisfaction is our goal. We wish to have your attention and support, let's work together for our mutual benefit.

    ADVANTAGES:
    1. New material: Nanocrystalline alloy magnetic core has high resistivity, high magnetic permeability, high saturation magnetic induction intensity, and high temperature stability.
    2. New design: The structure of the new winding is more compact, and the energy loss is very small. The leakage inductance is only 2 ~ 20uH, which is one tenth of that of similar transformers. Therefore, the system design becomes simple and convenient.
    3. Smaller size and larger capacity: Each gram of nanocrystalline material of the new transformer can perform 15W-25W power conversion (generally only 8-9W) at 20KHz frequency.
    4. Safety, high efficiency, energy saving: The extremely low loss makes the efficiency of the transformer more than 99%, and the load continuity rate reaches 100%. There is good insulation between the primary and secondary, and the withstand voltage exceeds 10,000 volts. Compared with traditional transformers, the new transformers have unparalleled advantages and alternatives.


    APPLICATION:
    Amorphous and nanocrystalline materials can replace ferrite materials. Main application fields: High-frequency high-power inverter DC charging power supply in aerospace and maritime, high-frequency inverter high-power DC power supply for civil and industrial use, charger, inverter welding machine, electroplating power supply, electric vehicle charging equipment, high-frequency induction heating power supply , High-frequency inverter arc spraying power supply, heating pipeline welding power supply, electric spark deposition surfacing power supply, high-power charger power supply, switching power supply, inverter power supply, uninterruptible power supply, etc.

    SAMPLE AND ORDER DESCRIPTION:
    Input and output are required;
    Pressure requirements;
    Copper or aluminum;
    Product size, such as diameter, height, leads length;
    Samples are charged, follow-up in the order;
    It is best to have product drawings or samples in kind;
    Prepay 50% deposit, the other 50% to delivery.
    The inverter transformer main transformer needs to be customized according to specific requirements, there is no standard inventory. Different design schemes, materials selection and production processes determine different final prices.

    PRODUCT SPECIFICATIONS:

    ModelCore size(mm)Base sizeEffective crossMagneticRecommended
    pathpower
    (mm)- sectional areaWelder current
    lengthP(f=20kHz)
    S(cm2)
    ODIDHODIDH
    L(cm)(kw)
    IKP-PTT-64-40-206440206637231.6816.32-4
    IKP-PTT -68-43-206843207240241.7517.4
    IKP-PTT -80-50-258050258544302.6320.44.5100/120A
    IKP-PTT -100-60-20100602010556232.8025.14-5160/200A
    IKP-PTT -104-60-30104603011057354.3825.9315A
    IKP-PTT -104-60-35104603511057405.2525.9400A
    IKP-PTT -105-60-40105604011057456.325.9400/500A
    IKP-PTT -120-60-30120603012557356.3029.88-15400/500A
    IKP-PTT -120-70-30120703012567355.2529.86-10315-400A
    IKP-PTT -120-70-40120704012568457.029.8500A
    IKP-PTT -130-80-40130804013676457.0033.015-20400/500A
    IKP-PTT -130-80-50130805013676558.7533.023-25500/630A
    IKP-PTT -130-90-50130905013685567.0034.515-20630A


    Note: the above table is the standard model of the core; we can also produce other specification transformers according to customer specifications.
