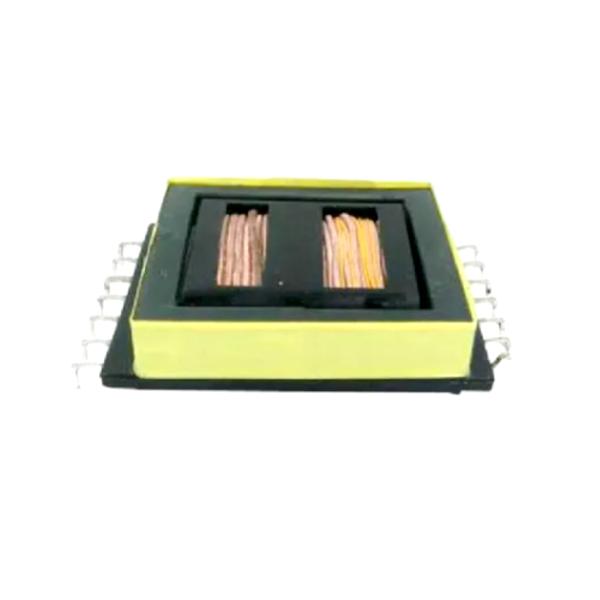

    Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers

    Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers
    • Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers
    • Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers
    • Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers
    • Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers
    • Buy cheap Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer from wholesalers

    Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer

    Ask Lasest Price
    Brand Name : IKP
    Model Number : EFD Type
    Certification : CE/UL/REACH/ROHS
    Price : 0.78-0.88
    Payment Terms : L/C, T/T
    Supply Ability : 100,000/week
    Delivery Time : 10-15 days
    • Product Details
    • Company Profile

    Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer

    Basic Info.

    Model NO.
    EFD Type
    Core
    Core-type Transformer
    Cooling Method
    Dry-type Transformer
    Winding Type
    Multi-winding Transformer
    Certification
    ISO9001
    Usage
    Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Efd
    Brand
    Ikp
    Transport Package
    Carton, Pallet
    Specification
    EFD Series
    Trademark
    ODM/OEM
    Origin
    China
    HS Code
    8504319000
    Production Capacity
    5000000PCS/Year

    Product Description

    Customized SMD Type Efd Core SMPS High Frequency Pulse Transformer

    Features:

    1. Operating Frequency: 50~200KHz
    2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Specifications (Unit: mm):
    P/N.PINSDimensions(mm)
    ABC+/-0.5DEFIG
    EFD-12861720313.52
    EFD-15107.318.221.352.5151
    EFD-15107.519.322.6316.72
    EFD-20109.425.327.73.7521.72
    EFD-20129.72426.83201
    EFD-251013.429.735.45252
    EFD-251012.629.731.55251
    EFD-301212.631.635.35302






    Electrical performance:

    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 2000 W
    3. Operating temperature:-40 ºC to +125 ºC
    4. Storage temperature:-25 ºC to +85 ºC

    Applications:

    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

    Kindly Reminder:

    1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
    2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
    3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
    4. About PAYMENT. Foreign customers:100% T / T; domestic customers: 30 days after delivery, according to the invoice payment.
    5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
    6. Contact us now for more details:
