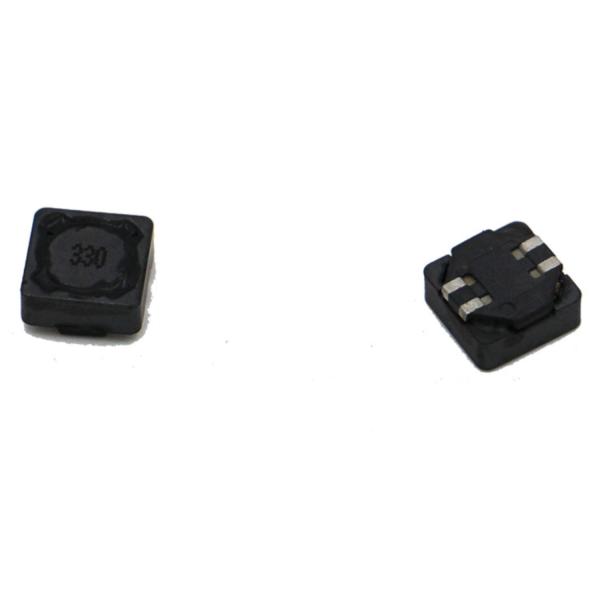

    Sde Type Power Inductor

    Ask Lasest Price
    Brand Name : IKP
    Model Number : SDE73-33UH
    Price : 0.09USD
    Payment Terms : L/C, T/T
    Supply Ability : 10,000pcs/week
    Delivery Time : 5-15 work days
    • Product Details
    • Company Profile

    Sde Type Power Inductor

    Product Description

    Sde Type Power Inductor
    • Magnetic metal powder inductor
    • Compact design
    • High current, low DCR and high efficiency
    • Very low acoustic noise and very low leakage flux noise
    • High reliability
    • 100% Lead (Pb)-free
    • RoHS Directive-compliant
    • Test frequency:
      • L: 100KHz/1.0V
      • All test data referenced to 25°C ambient
      • Testing instrument:
      • L: HP4284A, CH11025, CH3302, CH1320, CH1320S LCR meter/RDC: CH16502, Agilent 33420A micro ohmmeter
    • Heat rated current (Irms) will cause the coil temperature rise approximately Δt of 40°C (keep 1 minute)
    • Storage conditions
    • To maintain the solderability of terminal electrodes:
      • TAIPAQ products meet IPC/JEDEC J-STD-020D standard-MSL, level 1
      • Temperature and humidity conditions: Less than 40°C and 60% RH
      • Recommended products should be used within 12 months form time of delivery
      • Packing material should be kept where no chlorine or sulfur exists in the air
      • Transportation
      • Products should be handled with care to avoid damage or contamination from perspiration and skin oils
      • Use of tweezers or vacuum pick up is strongly recommended for individual components
      • Bulk handling should ensure that abrasion and mechanical shock are minimized



    Electrical characteristic
    L: S-F 4.7UH+30% AT 1KHZ 0.25V VR102 LCR
    DCR: S-F 80m MAX AT 25ºC CHEN HWA 502BCOHM METER
    IDC: S-F 2.1A MAX AT 1KHZ 0.25V CHUANG DA 1608+1310 LCZ
    Sde Type Power Inductor
