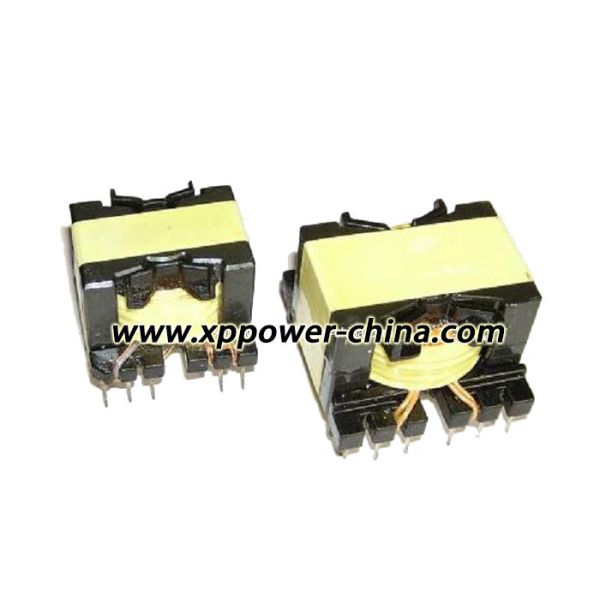

    Buy cheap Pq Series High Frequency Power Transformer from wholesalers

    Buy cheap Pq Series High Frequency Power Transformer from wholesalers
    • Buy cheap Pq Series High Frequency Power Transformer from wholesalers

    Pq Series High Frequency Power Transformer

    Ask Lasest Price
    Price : US& 0.2-0.4/PCS
    Payment Terms : L/C, T/T
    Supply Ability : 5000000PCS/YEAR
    Delivery Time : 7-15Days
    • Product Details
    • Company Profile

    Pq Series High Frequency Power Transformer

    Basic Info
    • Model NO.: PQ20/20
    • Phase: Single
    • Cooling Method: Oil-immersed Type Transformer
    • Origin: Hefei
    • Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio
    • Core: Core-type Transformer
    • Winding Type: Multi-winding Transformer
    • Specification: RoHS/SGS/UL/ISO9001
    • HS Code: 85043190
    FEATURES:

    -High Power
    -Low Profile
    -Inexpensive Type
    -High Reliability
    - Low price
    - Cost-effective
    - High impedance and low loss
    -High Conversion Efficiency
    -Easily Inserted into PCB
    - RoHS compliance and UL
    - Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

    APPLICATION:

    -DC/DC Converter Transformer
    -Current Transformer
    -Switching power supply, Adapter and UPS
    -Computer products
    -DVD
    -LED power board
    -LCD TV & Monitor Displays Power Boards
    -Consumer Electric Products & Battery Charger, Printers
    - Specially used in switching power supply and kinds of high-frequency circuit
    - Plays a role in oscillating and separating

    SPECIFICATIONS:

    -Operating Temperature: -25° C to +60° C
    -Storage Temperature: -25° C to +85° C
    -Operating Humidity: 30 to 95%RH
    -Storage Humidity: 30 to 95%RH

    Reasons of our top-quality components help your business succeed:

    -22 years of experience customizing and power transformers
    -Your professional and reliable partner for various electronics
    - Over 1000 buyers value our products
    -20000m2 factory with 21 production lines and 800 employees
    - 5 million units annual capacity
    - Our Products has the UL Insulation System, Quality is guaranteed
    - High quality and best services
    - More models and types are available. Welcome your spec and sample to make custom-manufacturing.
    Note: The design bases on: 1. Forward model 2. PC40series ferrite 3. Switching frequency: 100 KHz

    Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
    Core shapeBobbin typeNo. of terminalsDimensions mmCenter leg area
    Ae mm2
    Maximum output
    V A
    MaxMaxMax±0.3±0.5±0.5±0.1Min
    ABCDEFGH
    PQ20/20Vertical14(8+6)2424222.5/3.85.120.30.63.061.492
