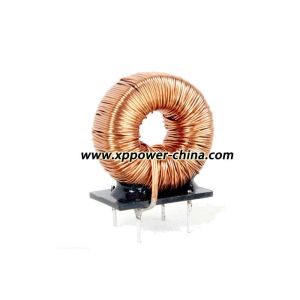

    Buy cheap Pfc Choke Coil Power Inductors, High Current, Horizontal or Vertical Mount from wholesalers

    Buy cheap Pfc Choke Coil Power Inductors, High Current, Horizontal or Vertical Mount from wholesalers
    • Buy cheap Pfc Choke Coil Power Inductors, High Current, Horizontal or Vertical Mount from wholesalers

    Pfc Choke Coil Power Inductors, High Current, Horizontal or Vertical Mount

    Ask Lasest Price
    Price : $ 0.6-0.8/PCS
    Payment Terms : T/T
    Supply Ability : 5000000PCS/Year
    Delivery Time : 7-15 Days
    • Product Details
    • Company Profile

    Pfc Choke Coil Power Inductors, High Current, Horizontal or Vertical Mount

    Basic Info
    • Model NO.: PFC Series
    • Structure: Inductive Choke
    • Structure of Winding: Single Coil
    • Structure of Magnetizer: Ferrite Coil
    • Packaging Form: Epoxy Resin Inductance
    • Origin: Hefei
    • Type: Choke Inductor
    • Working Frequency: High Frequency
    • Nature of Operation: Choke Coil
    • Range of Application: Choke
    • Inductor Value: Fixed Inductor
    • Specification: UL/ROSH/ISO900/ISO14001
    • HS Code: 85043190
    Product Description
    PFC chokes are made from the iron powder core with either one or two coils. As small magnetic leakage, a low wastage and Low profile, high power factor correction, they are widely applied in electronic ballast or other switch power supply.
    Active PFC offers better THD and is significantly smaller and lighter than a passive PFC circuit. To reduce the size and cost of passive filter elements, an active PFC operates at a higher switching frequency than the 50Hz/60Hz line frequency.
    Active PFC functions include:
    -Active wave shaping of the input current
    -Filtering of the high frequency switching
    -Feedback sensing of the source current for waveform control
    -Feedback control to regulate output voltage
    Buck, boost, flyback and other converter topologies are used in active PFC circuits.

    Key Specifications/Special Features:

    -Selection of materials: Amorphous magnetic, Nan crystalline ring, Kool toroid
    -High current, horizontal or vertical mount
    -High saturation flux density
    -High power factor correction
    -Low profile and low weight
    -Less flux leakage and beat
    -Low radiation and core loss
    -Precise inductance
    -Operating temperature: -55 to 105° C
    -Power: 200, 250, 300 and 500W
    -100V/230 50Hz
    -Inductance Range: 1 to 1000 uH
    -PF value: Greater than 98%
    -Tested at 100 kHz, 0.1Vrms inductance of uH 10%
    -DC current at which the inductance drops 10% (type) from its value without current
    -Electrical characteristics at 25 degrees Celsius
    -Insulation: Class B (130° C), Class F (155° C), Class H (180° C), Class N (200° C) and Class R (220° C)
    -Certifications: UL, CQC and CE
    -Excellent utilization of electricity, good for environmental protection
    -Customized specifications are accepted

    Applications:

    -Frequency Power
    -UPS
    -EMI/RFI filters
    -Switching power output and smoothing circuits
    -Used as choke coil for high frequency SMPs
    -Countermeasure against spike ripples
    -DC/DC converters
    -IP and OP devices
    -Notebook computer
    -Air conditioning
    -Digital TV
    -Battery power equipment
    -Power supply of all types of household appliances
    -Switching power supplies

    Reasons of our top-quality components help your business succeed:

    -22 years of experience customizing and power inductors
    - Experienced staff keeps good quality
    -Your professional and reliable partner for various electronics
    - Over 1000 buyers value our products
    -20000m2 factory with 21 production lines and 800 employees
    - 5 million units annual capacity
    - Our Products has the UL Insulation System, Quality is guaranteed
    - Good Product Performance, high quality and best services
    - More models and types are available. Welcome your spec and sample to make custom-manufacturing.

    Browse our online showroom and contact us with your OEM/ODM specifications. Our operators are waiting your calls and E-mail. XPPOWER will also produce devices outside these specifications to meet specific customer requirements, please contact our sales for more information.
